GM5BW96320A【PDF 9/14 页】LED PSUEDO WHITE 3.2X2.8 SMD

收藏本站

您好，
买卖IC网欢迎您。
请登录
免费注册

买卖IC网

Sheet目录13

5页 6页 7页 8页 [9页]10页 11页 12页 13页

Sheet No.: DG-06Y004A

GM5BW96320A

?SPAN class="pst GM5BW96320A_2653400_2">Design Notes

1. This product is not designed to resist electromagnetic and ionized-particle radiation. Moreover, it is not designed

to directly resist excessive moisture, such as dew or condensation; or corrosive (salt) air or corrosive gases,

such as Cl, H

S, NH

, SO

, NO

2. Do not allow the circuit design to apply any reverse voltage to the LEDs.

3. This part can be easily damaged by external stress. Make sure they are not mechanically stressed during or

after assembly.

4. This product uses a blue LED chip in combination with fluorescent materials to achieve its color. There may be

some afterglow of the phosphor when driving this part with pulsed power.

5. This part has a high light output. Looking directly at it during full power output may cause injury.

6. Sharp recommends taking proper personal and environmental static control precautions when handling this part.

7. Materials of high thermal conductivity are incorporated in this device to allow generated heat to be effectively

transferred from it to the circuit board. For best reliability, Sharp recommends against locating other sources of

heat near the LED, and to design the circuit board in such a way that heat can easily escape from the circuit

board. Sharp also recommends designing the circuit board so that the parts case temperature is always kept

under 100?(when the LED is turned on) including self-heating.

8. Sharp recommends handling these parts in a clean, non-dusty environment since surface dust may be difficult

to remove and can affect the optical performance of the part.

9. Sharp recommends confirming the parts performance, reliability, and resistance to any of these conditions, if it

is to be used in any of these environments:

"Direct sunlight, outdoor exposure, dusty conditions

"In water, oil, medical fluids, and organic solvents

"Excessive moisture, such as dew or condensation

"Corrosive (salt) air or corrosive gases, such as Cl, H

S, NH

, SO

, NO

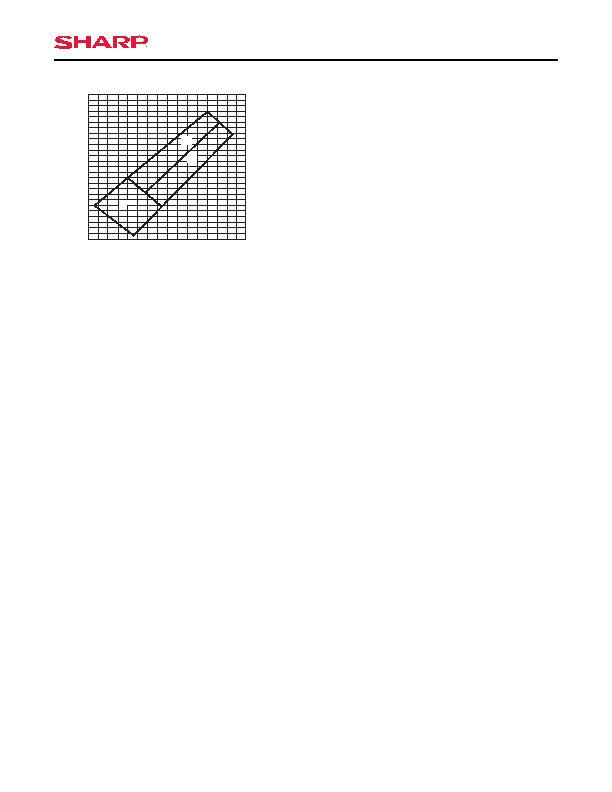

Fig. 12 Chromaticity Diagram

0.36

0.34

0.32

0.30

0.28

0.26

0.24

0.26 0.28 0.30 0.32 0.34
